Monitor

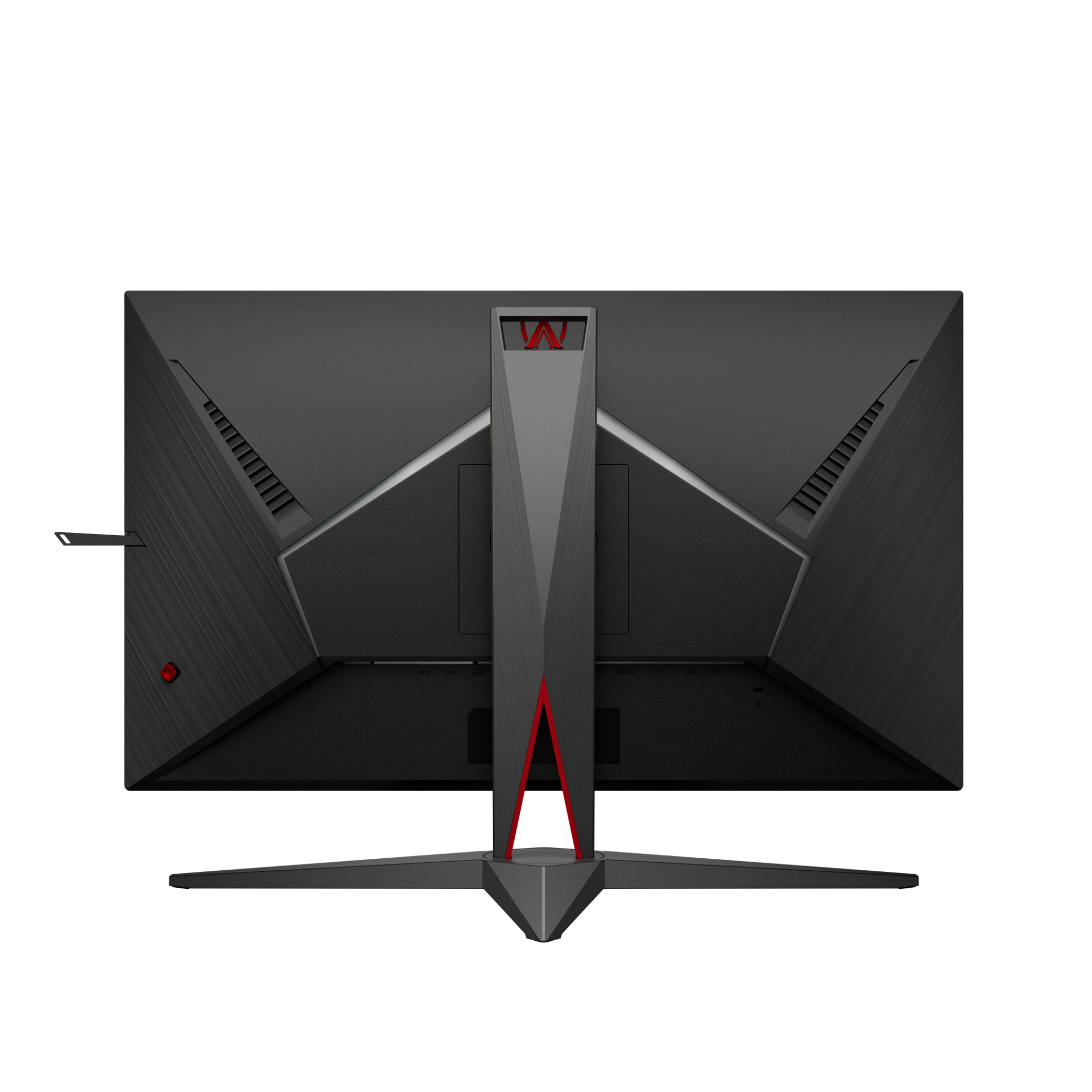

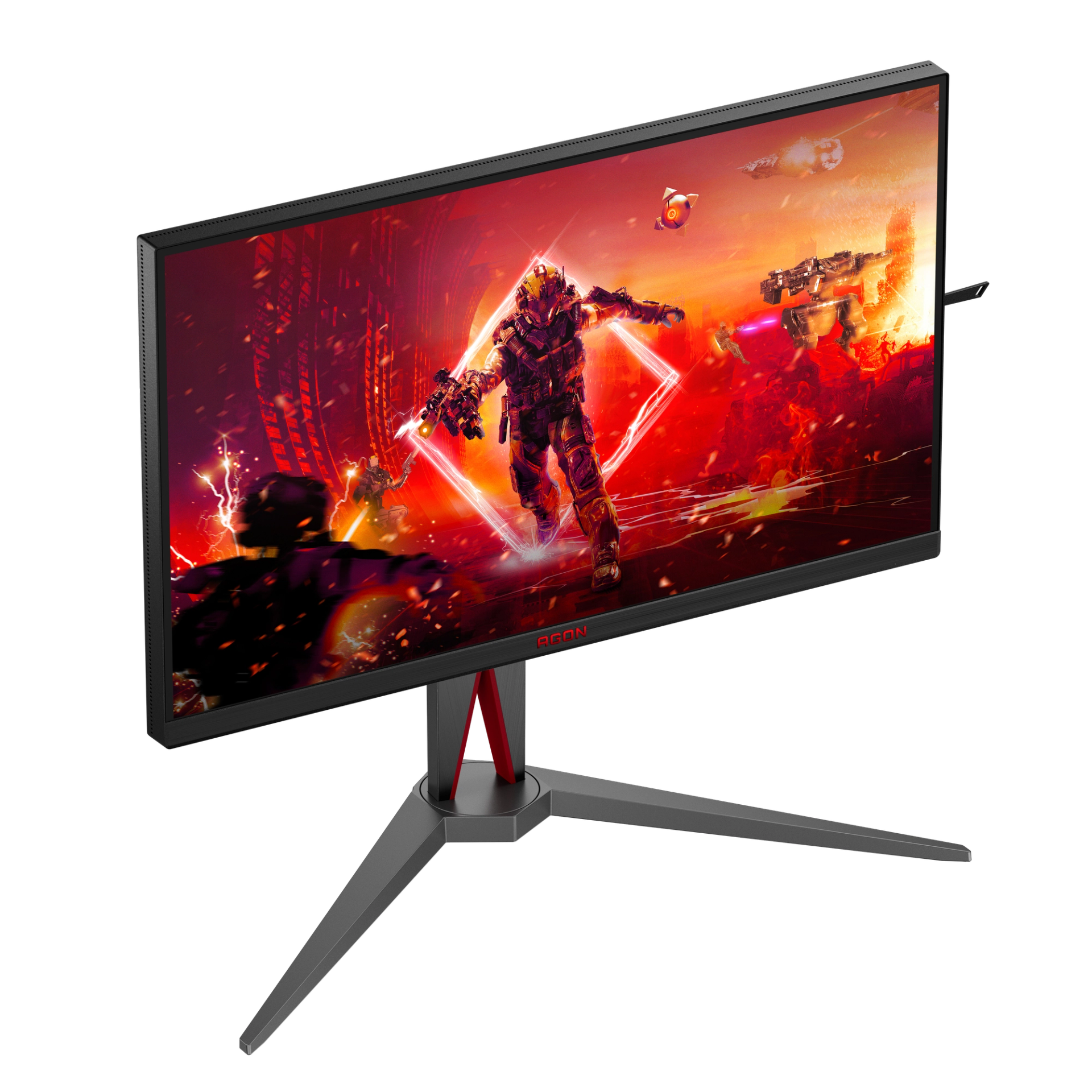

AG275UXM2

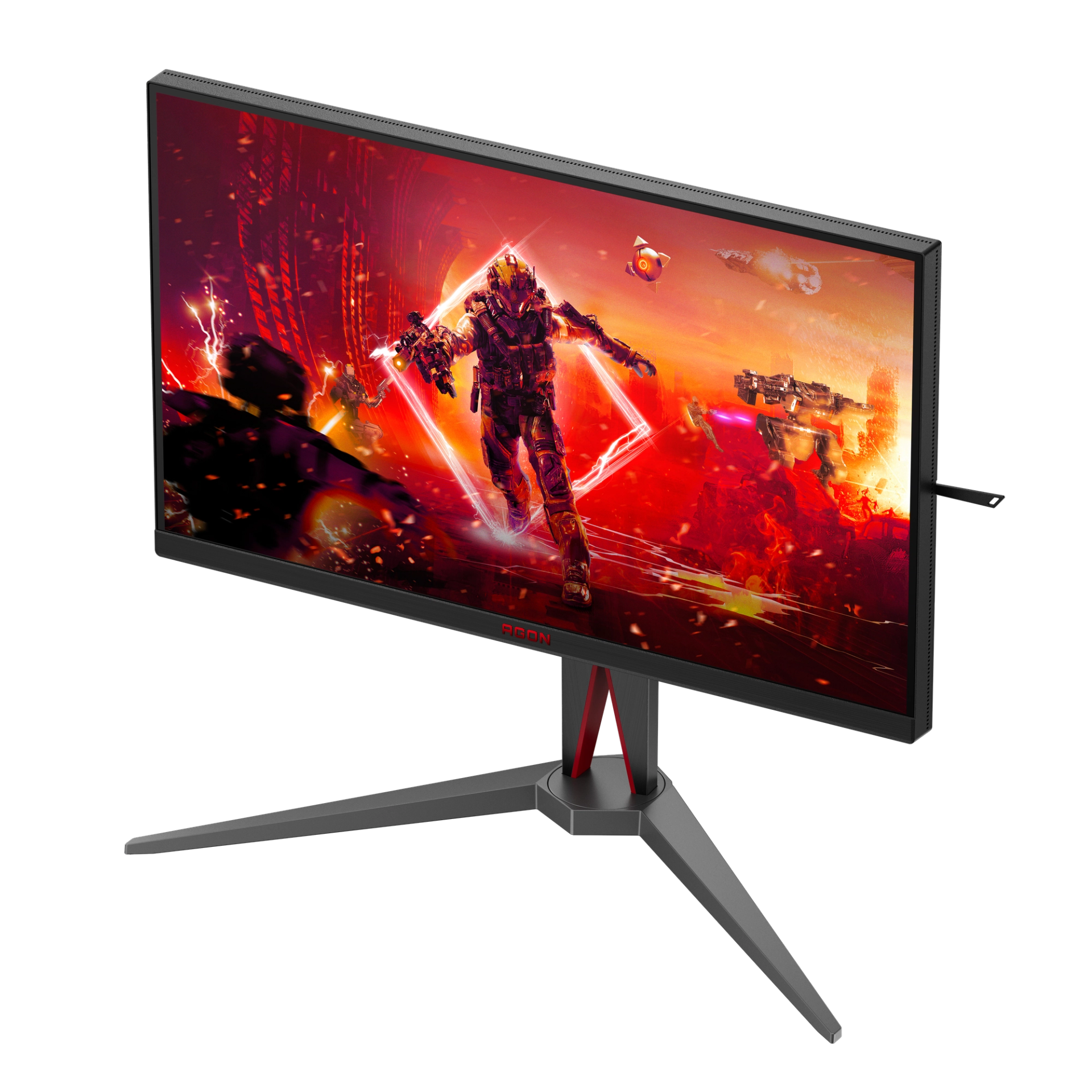

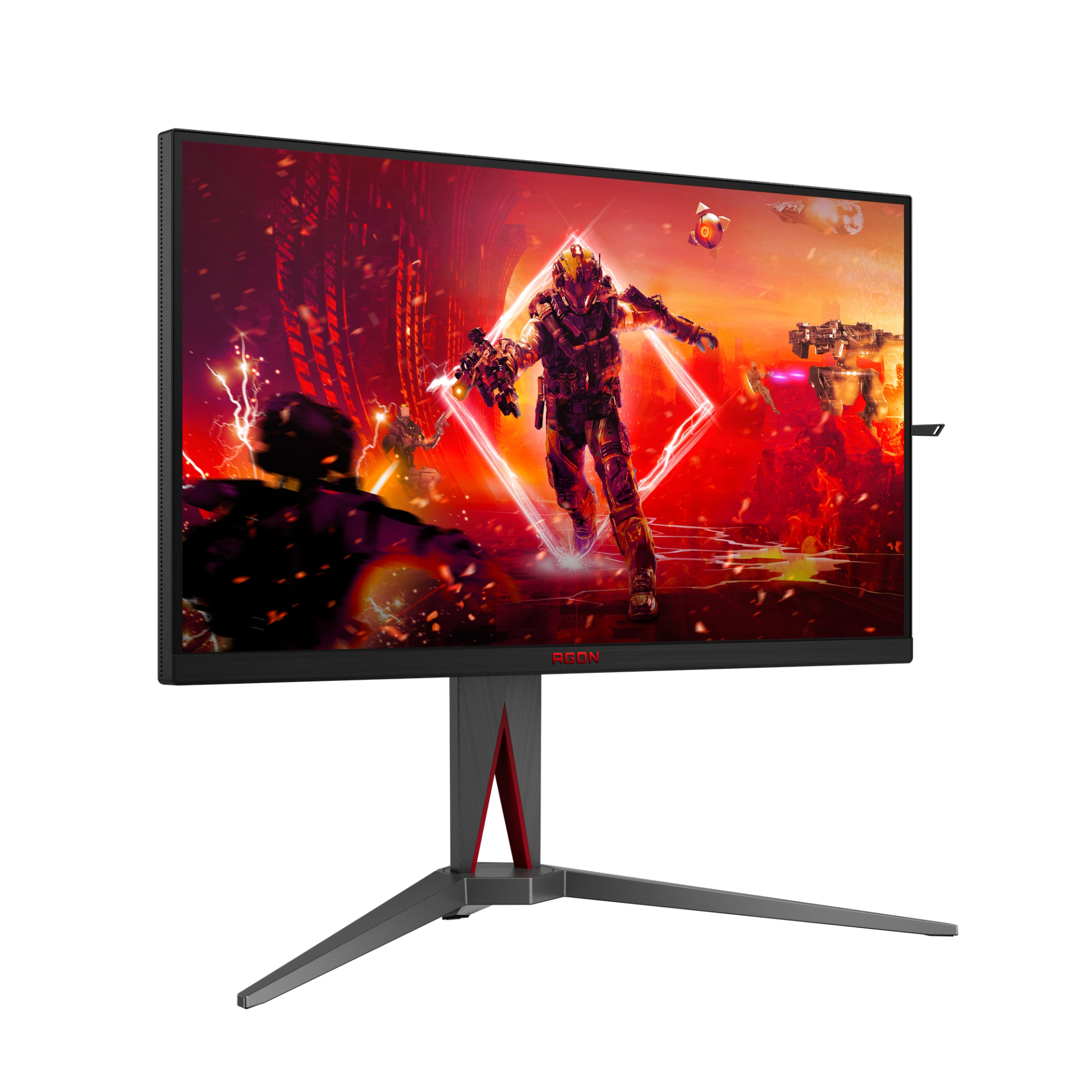

27" UHD Mini-LED gaming monitor with 2304 local dimming zones, Dual Refresh Rate, DisplayHDR 1400, and 0.3ms response for elite performance.

Screen size (inch)
27.0
Panel resolution
3840x2160
Panel type
IPS
Response time GtG
5 ms
HDR (High Dynamic Range)
VESA Certified DisplayHDR™ 1400
Discover all the advantages this product has to offer
View all specifications

UHD (4K) Resolution

With a 4K UHD resolution of 3840 x 2160 pixels – four times the resolution of a Full HD display – the monitor boasts a pixel density that delivers brilliantly sharp images with the finest details.

DFM UHD@160Hz - FHD@320Hz - MONITOR

Dual Frame Mode (DFM) on AOC monitors offers unparalleled flexibility, allowing users to harness the power of UHD 3840x2160 resolution at an ultra-smooth 160Hz refresh rate. This advanced feature delivers exceptionally sharp, vibrant, and fluid visuals, perfect for immersive gaming, high-definition content creation, and cinematic experiences, ensuring every detail is rendered with stunning clarity and responsiveness.Push Your Performance to the Limit with a Lightning-Fast 320Hz Refresh Rate at Full HD Resolution. Perfectly Balanced for Competitive Gamers, This Display Delivers Ultra-Smooth Motion, Razor-Sharp Clarity, and Minimal Input Lag—Giving You the Speed and Precision to Stay Ahead in Every Frame.

Color That Feels Real

Vesa Certified DisplayHDR 1400 delivers dramatically different visual experience. With the help of local dimming and super high peak brightness up-to 1400 nits, images come to life with advanced highlights featuring deeper, more natured blacks. It renders a fuller palette of rich new colors, delivering a visual experience that engages your senses.

0.3ms MPRT Response Time

Feel the truly immersive gaming experience. Whether you're navigating through a fast-paced racing game or engaged in a high-stakes battle, every millisecond counts! The 0.3ms MPRT monitor could be your ticket to gaming excellence, with quick reaction times and smooth gameplay.

Specifications

Download product leaflet (PDF)

Cabinet information

Bezel type (front)
3-sided frameless

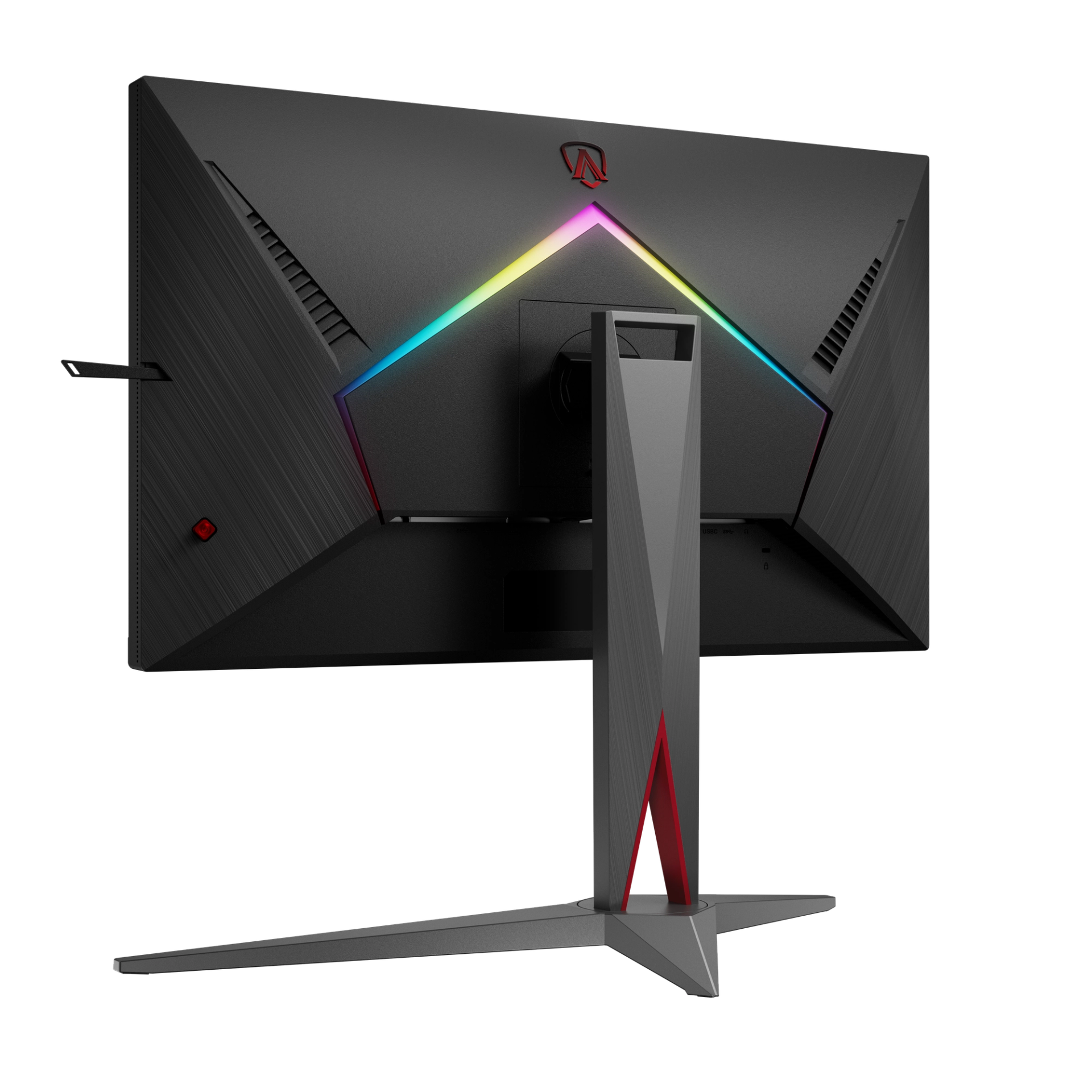

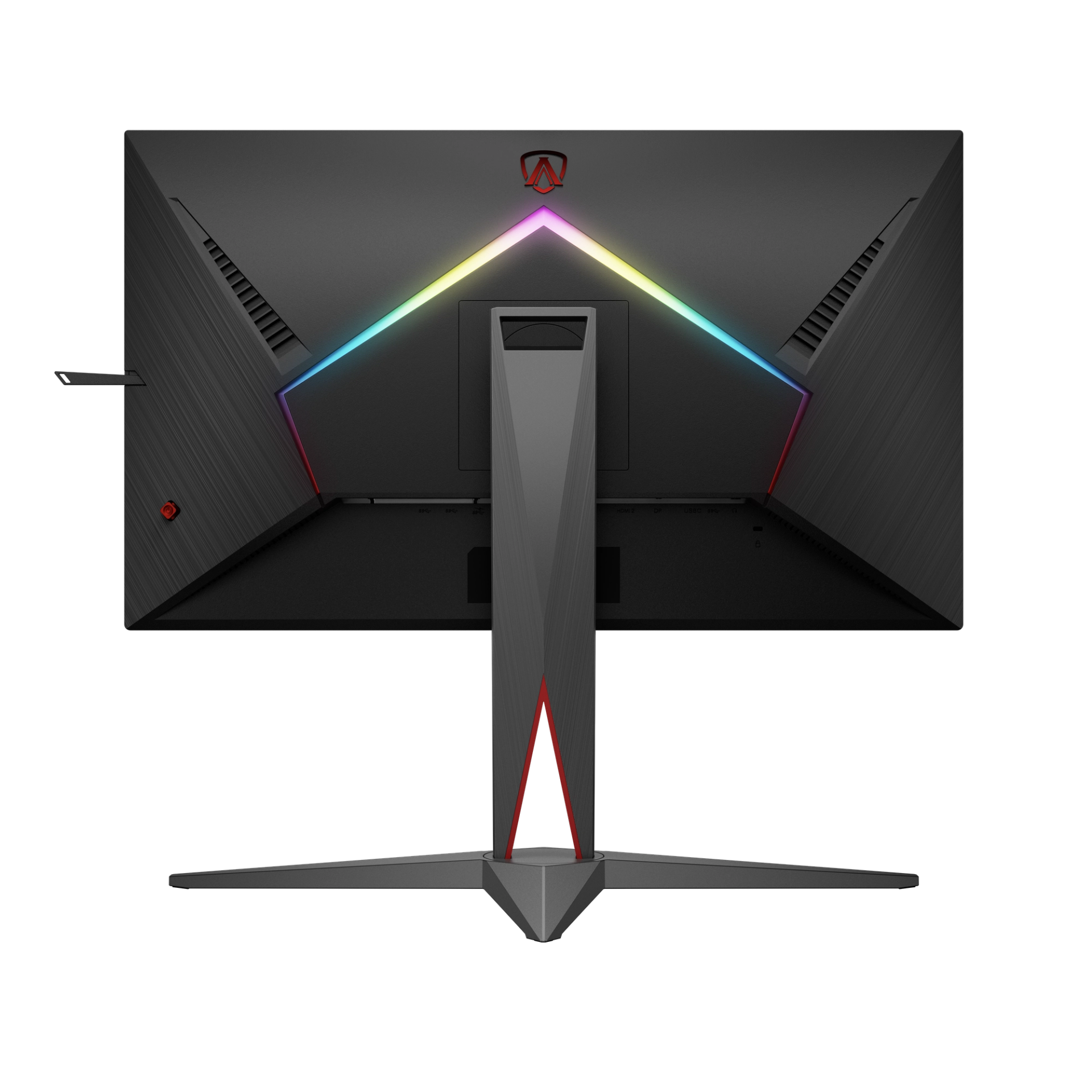

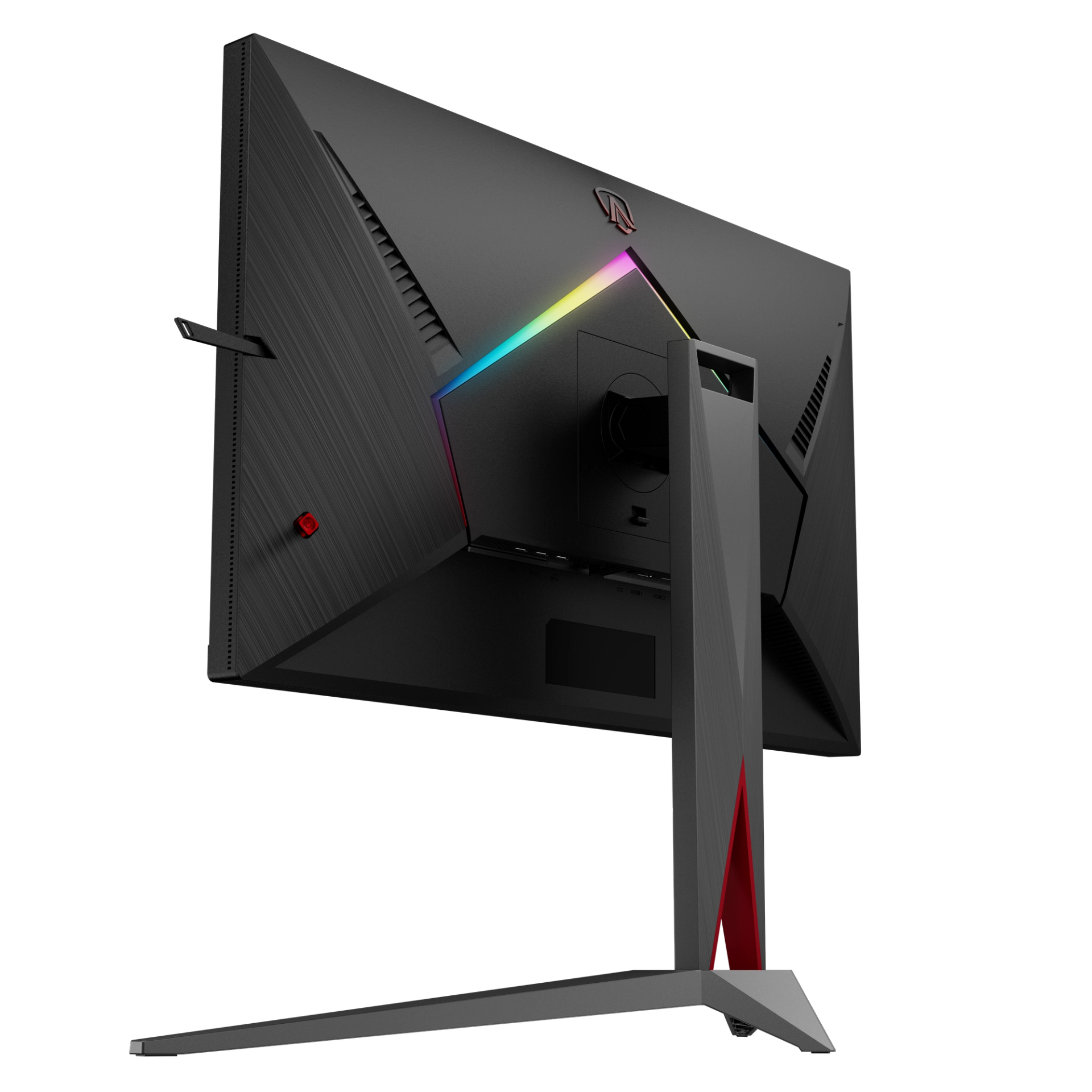

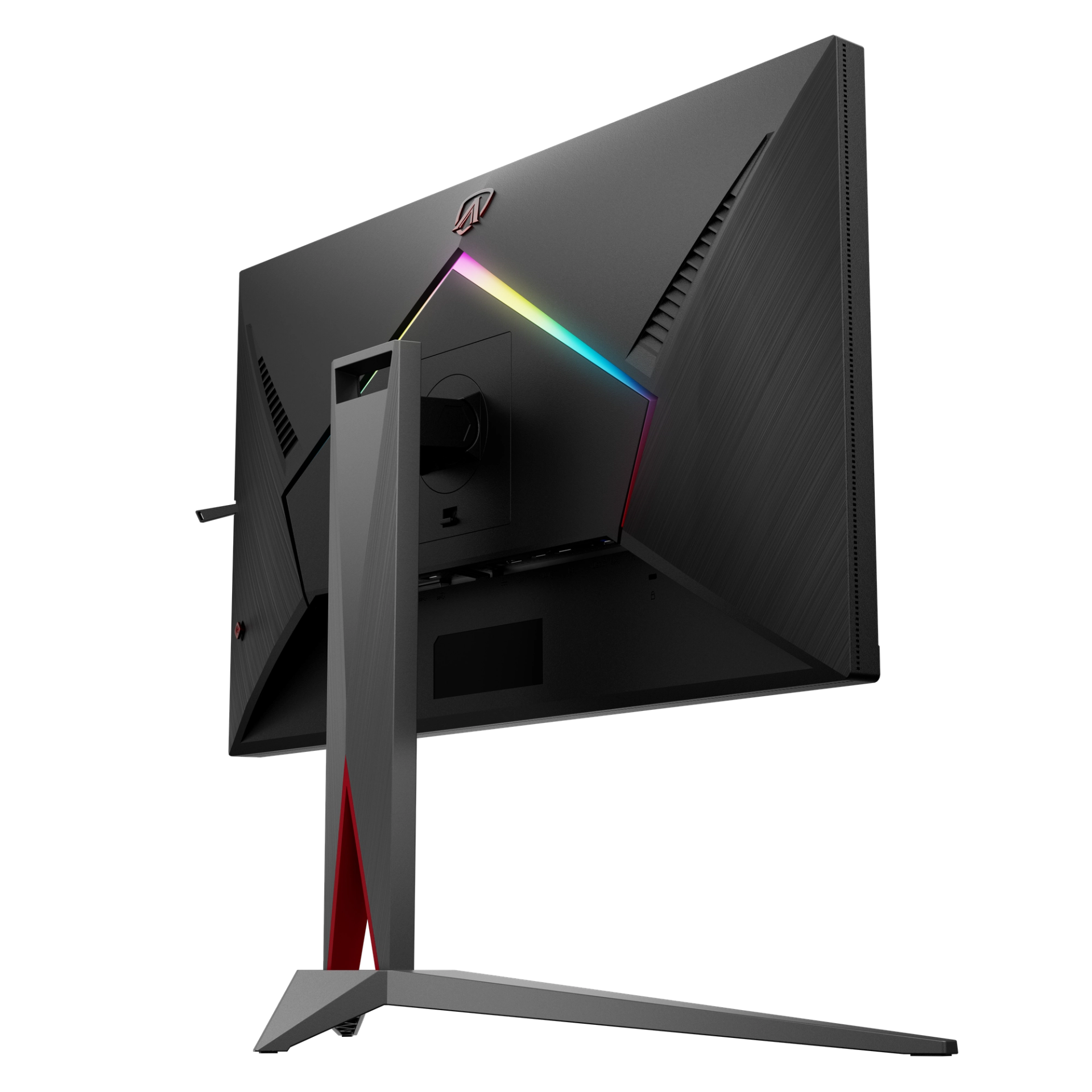

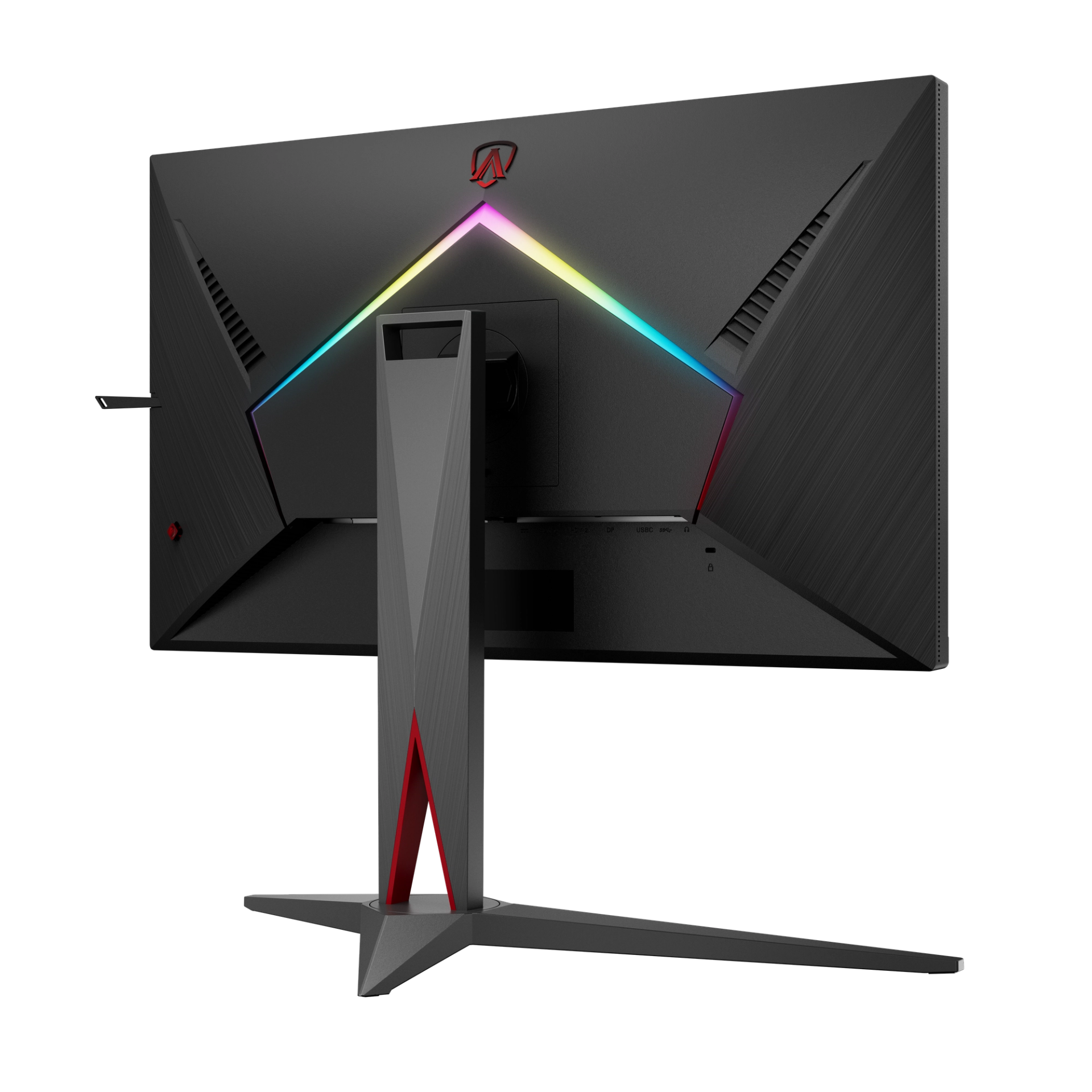

Light FX (RGB)
Removable stand
Kensington Lock
I/O define: Connectors on rear cabinet
Vertical insert
Quick release function
Sound enhancement
No
Stand screw spec
Thumb screw
VESA Mount screw Spec
M4 x 10
Product color
Body : Black / stand : Grey
Built-in speakers fire direction
NA
VESA Mount Support
Yes
MonitorWebcam
No
Cabinet colour (backside)
Grey, Black
Vesa wallmount
100x100

Connectivity information

Digital HDCP (HDMI version)
HDCP 1.4/2.2
USB-C connectivity
Yes
USB Hub
Microphone in
Displaylink in
DisplayPort output
0x
DP HDCP version
HDCP 1.4/2.2
mini USB (for external keypad)
No
MST / Daisy chain (DP out or TBT out)
Thunderbolt in
0x
PD for USB C/TBT
USB C1 : PD=65W, PD3.0, 5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/3.25A
Microphone out
D-SUB (VGA)
0x
DVI
0x
RJ45
No
USB Hub Down Stream
3 x USB3.2 type A Gen1, 5Gbit/s (BC1.2x1 yellow)
HDMI
HDMI 2.1 x 2
DisplayPort
DisplayPort 1.4 x 1
USB generation
USB 3.2 (Gen 2)
Audio Output
1x Audio out
USB Type upstream
1 x USB3.2 type B Gen 1, 5 Gbit/s

Display information

Screen size (inch)
27.0
Flat / Curved
Flat
Curvature Radius
Flat
Display viewing Area (HxW) in mm
596.736 (H) × 335.664 (V)
Panel treatment
Antiglare (AG)
Pixel Pitch (mm)
0.1554
Pixels per Inch
163.0
Panel resolution
3840x2160
Aspect ratio
16:9
Panel type
IPS
Backlight type
WLED
Max Refresh rate
320 Hz
Response time GtG
5 ms
Response time MPRT
0.3 ms
Static contrast ratio
1000:1
Dynamic contrast ratio
80M:1
Viewing angle (CR10)
178/178
Display colours
1.07B - 10 bit (8 bit + FRC)
Brightness in nits
SDR : 600 cd/m² / HDR ON: 1200 cd/m² / HDR peak : 1650 cd/m²
Color Gamut
Panel Native: 106.5% NTSC ;DCI-P3: 98% with Native Color @ CIE1976
OD Response (typical)
1 ms GtG
Panel Haze Value
25%
Panel IIS
A(2:3:5)
Support 1:1 function
Local Dimming Zones
Local Dimming 2304 zone

Ergonomic information

Tilt
-3° ±2° ~ 21° ±2°
Height adjust (mm)
150mm
Swivel
20° ±2° ~20° ±2°

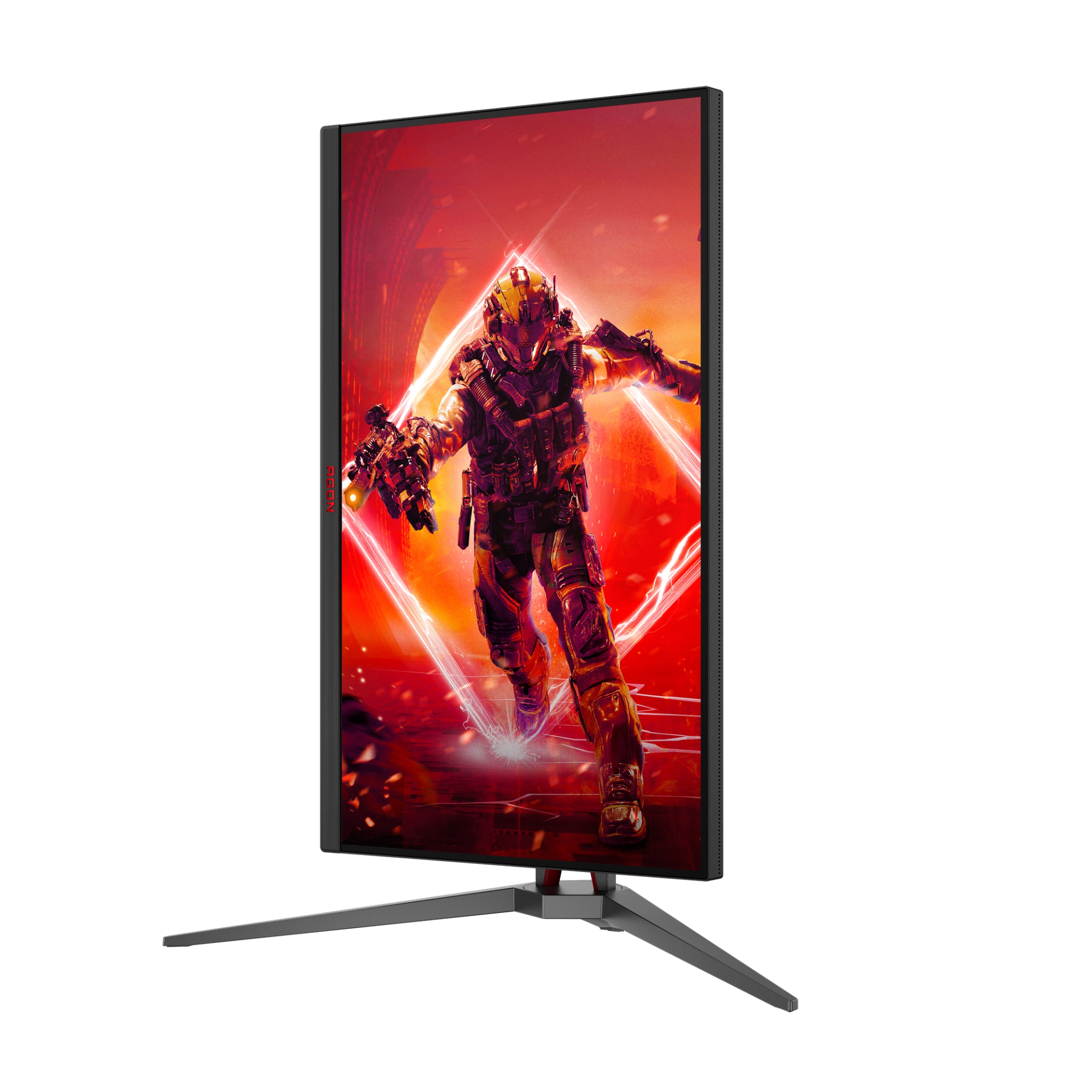

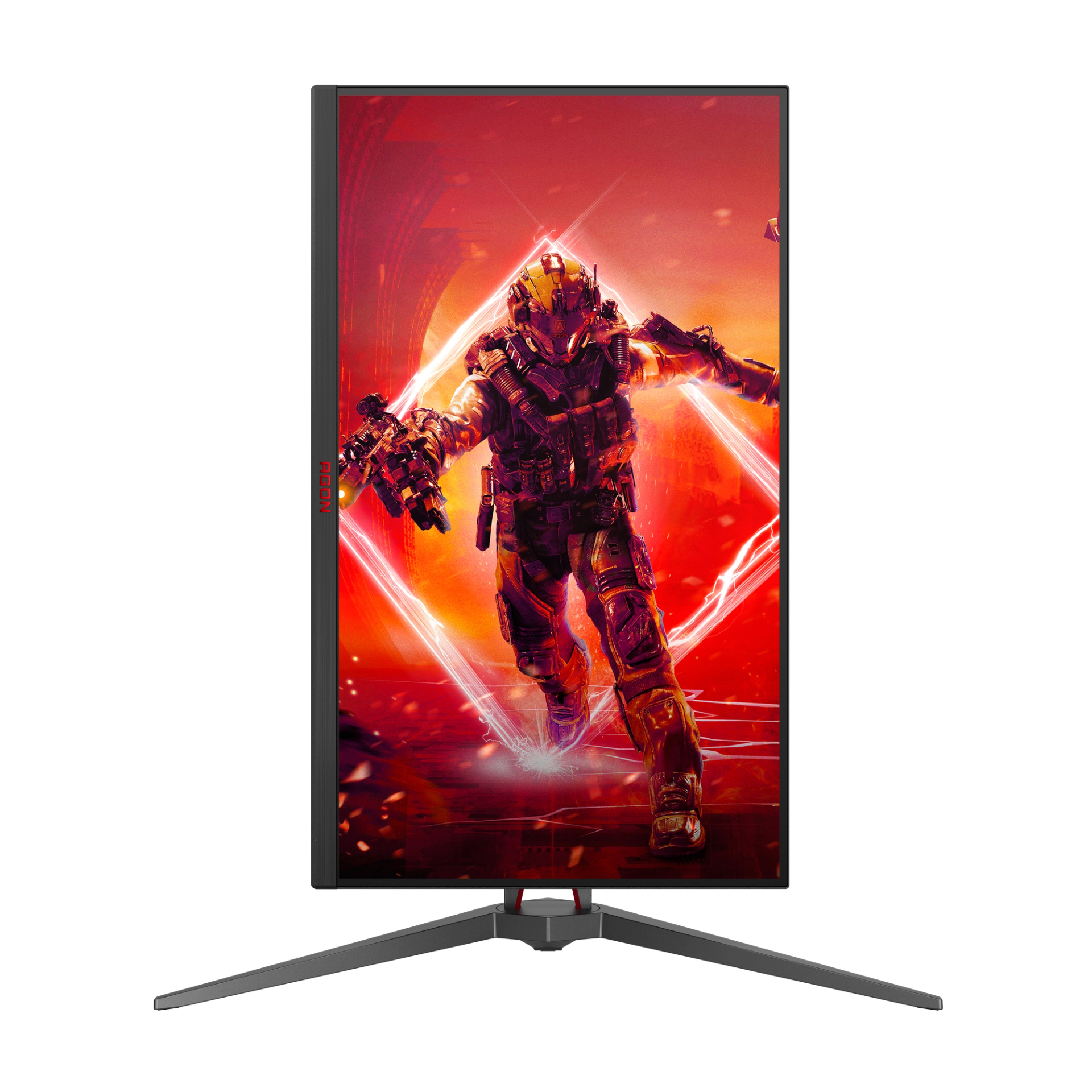

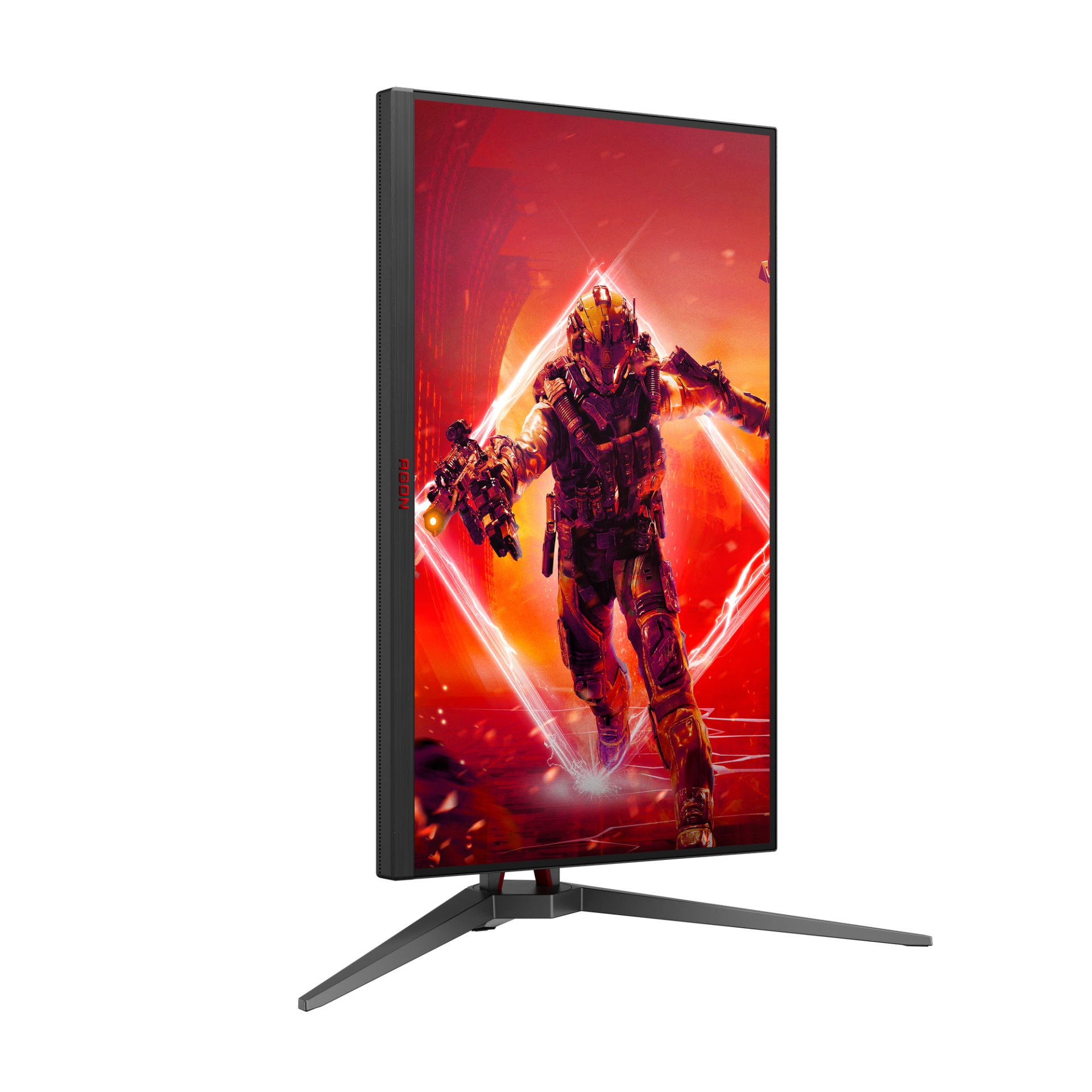

Pivot
90° ±2° ~ 90° ±2°
Auto Pivot (G sensor)
NO

Other information

MTBF
30.000 hours
Accessory box
OSD type
AGON
Plug & Play Compatibility
Yes, DDC/CI
Operation System
Windows 8.1/10/11, MacOS

Power consumption

Power supply
External
Power source
19.5VDC, 6.93A
Power consumption on (typical) in watts
47.0
Power consumption standby in watts
0.5
Power consumption off in watts
0.3
Power LED indicator (Operation)
White
Power LED indicator (Standby)
Orange
Power Switch

Product dimensions

Product dimensions incl. base (WxHxD) mm
613.4 × 422.8~561.1 × 234.5
Product dimensions excl. base (WxHxD) mm
613.4 × 365.8 × 58.8
Packaging dimensions (WxHxD) mm
840 × 445 × 161
Gross weight incl. package (in kg)
10.12
Product with stand (kg)
6.77
Product without stand (kg)
5.29

Regulatory compliance

CE
FCC

Sustainability

RoHs compliant
EPA (latest version)
Low Halogen
CEC
Carton material
Paper
Carton material print
Color Print
TCO Certified
No

Video features

HDR (High Dynamic Range)
VESA Certified DisplayHDR™ 1400
Flicker-Free
Flicker Free
eyeSafe (TUV) hardware
KVM
Yes
Color Accuracy
E<2
Multiview (PbP, PiP)
PiP+PbP

What's in the box

RS232
Color and brightness uniformity report in box
