LU201/5CHA/96
LU201/5CHA/96

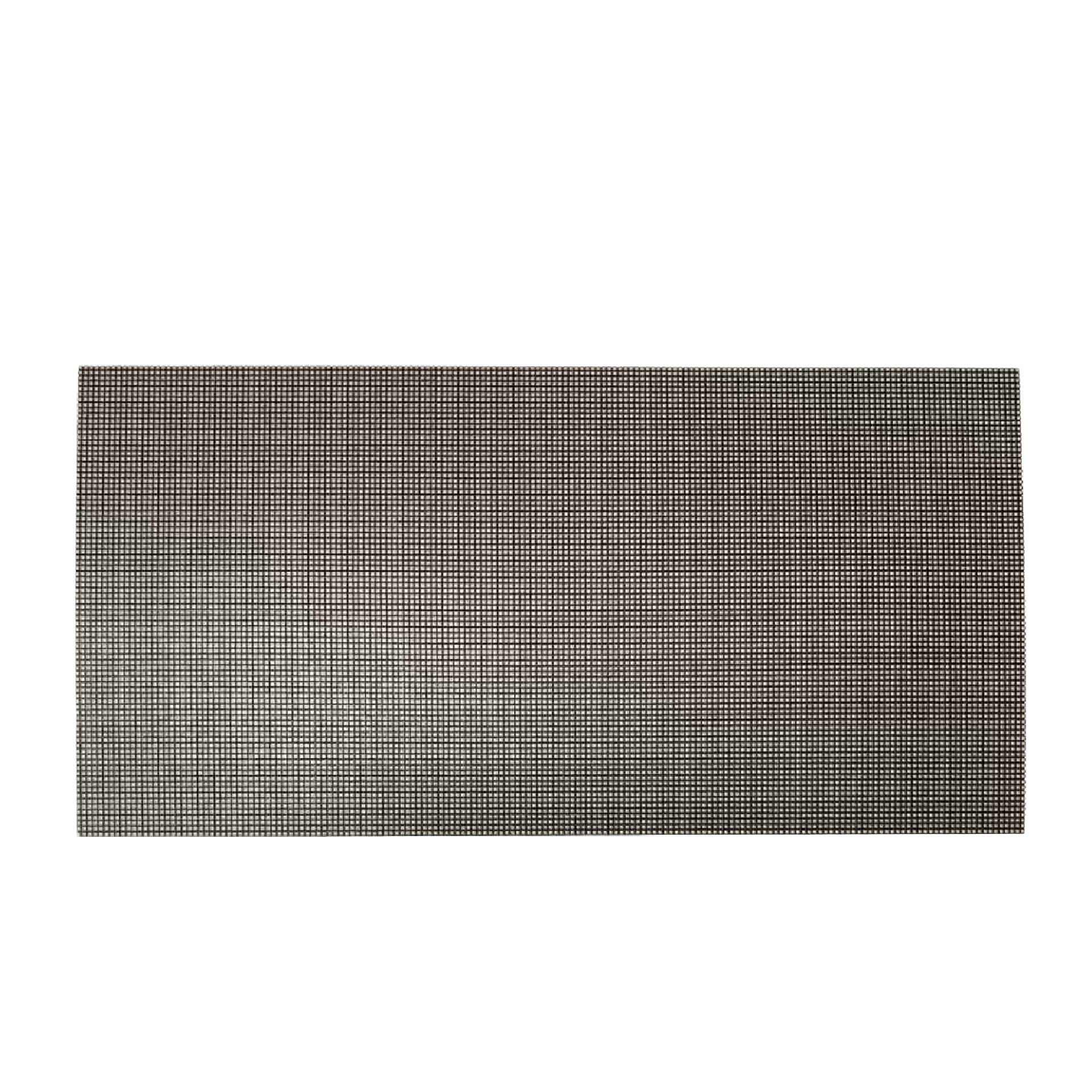

Indoor SMD LED Soft Modules LU Series

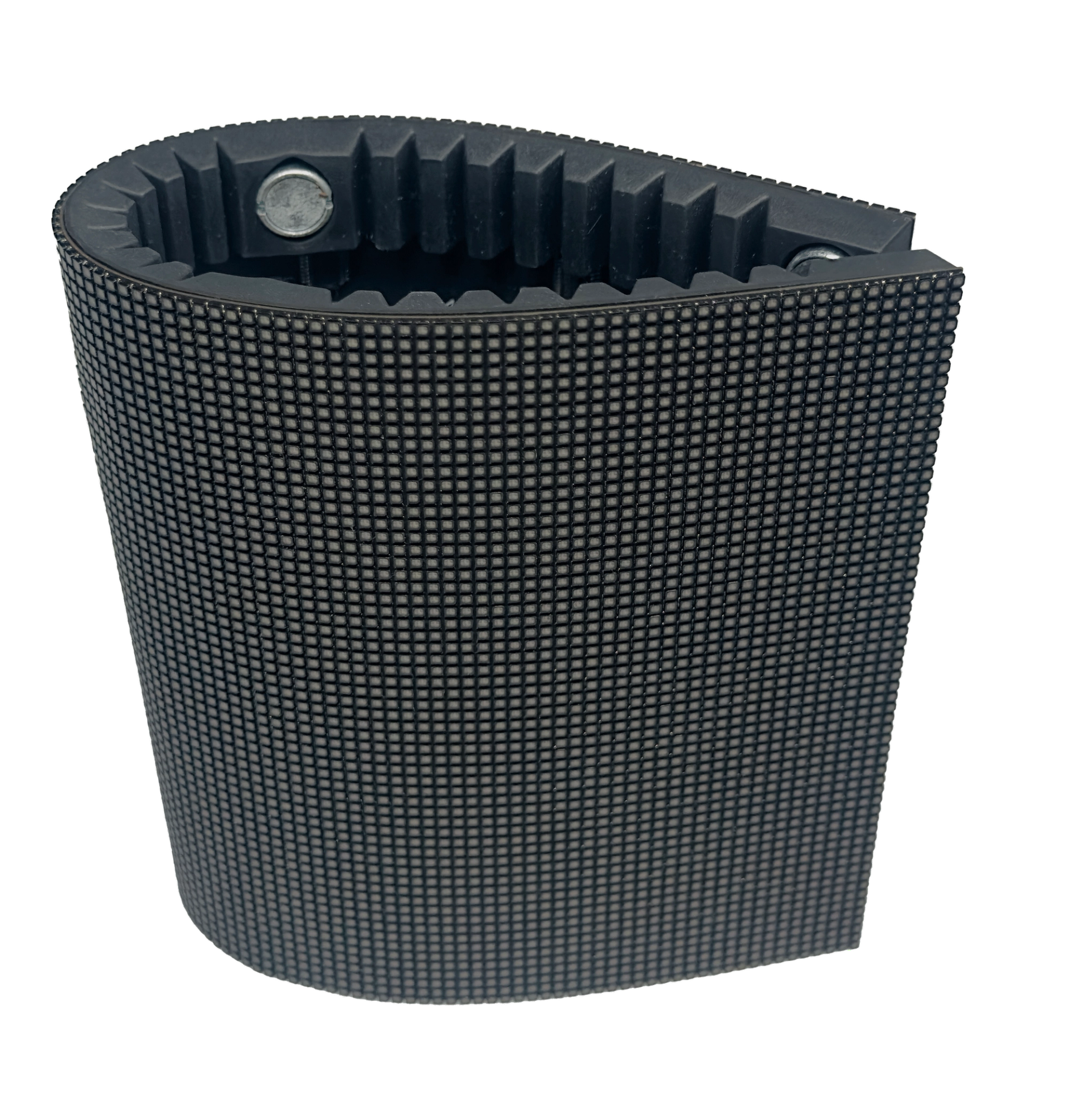

The AOC LU Series introduces a breakthrough in creative display technology with its full-color, ultra-flexible LED soft modules. Engineered with advanced bendable substrates, these modules can be twisted, folded, and tiled seamlessly to conform to irregular surfaces, including cylindrical and waved structures. The powerful magnetic rear system offers rapid, screw-free installation and removal. Despite its extreme flexibility, the series maintains high resolution and brightness for compromising, immersive visual experiences.
Specifications
- Brightness cd/m2 (typ.)500
- Contrast Ratio (typ)5000:1
- Viewing angle H/V (min)140/140
- MTBF100.000 hours
- Pixel Pitch (mm)2.0
- LED TypeSMD
- Module Resolution (W×H in pixels)160 x 80
- Density (dot/m2)250,000
- Color Temp (K)3,200 ~ 9,300
- Cabinet MaterialRubber Bottom Shell
- Bending Angle110° ~ 180°
- Operating Temperature (°C)-10℃~ 45℃
- Operating Humidity10% ~ 65% RH Non-Condensing
- Storage Temperature (°C)0℃~ 40℃
- Storage Humidity10%～60% RH Non-Condensing
- MaintenanceFront
- Refresh Rate (Hz)3,840
- IP RatingIP30
- Power suplyAC 100V - 240V @50HZ / @60HZ
- Power consumption type (W)≤114
- Power consumption max (W)≤345
- Module Size (WxHxD,mm)320 x 160 x 8
