LE251/5CHH/96

Name: AOC le251_5chh_96 commercialdisplay
Brand: AOC

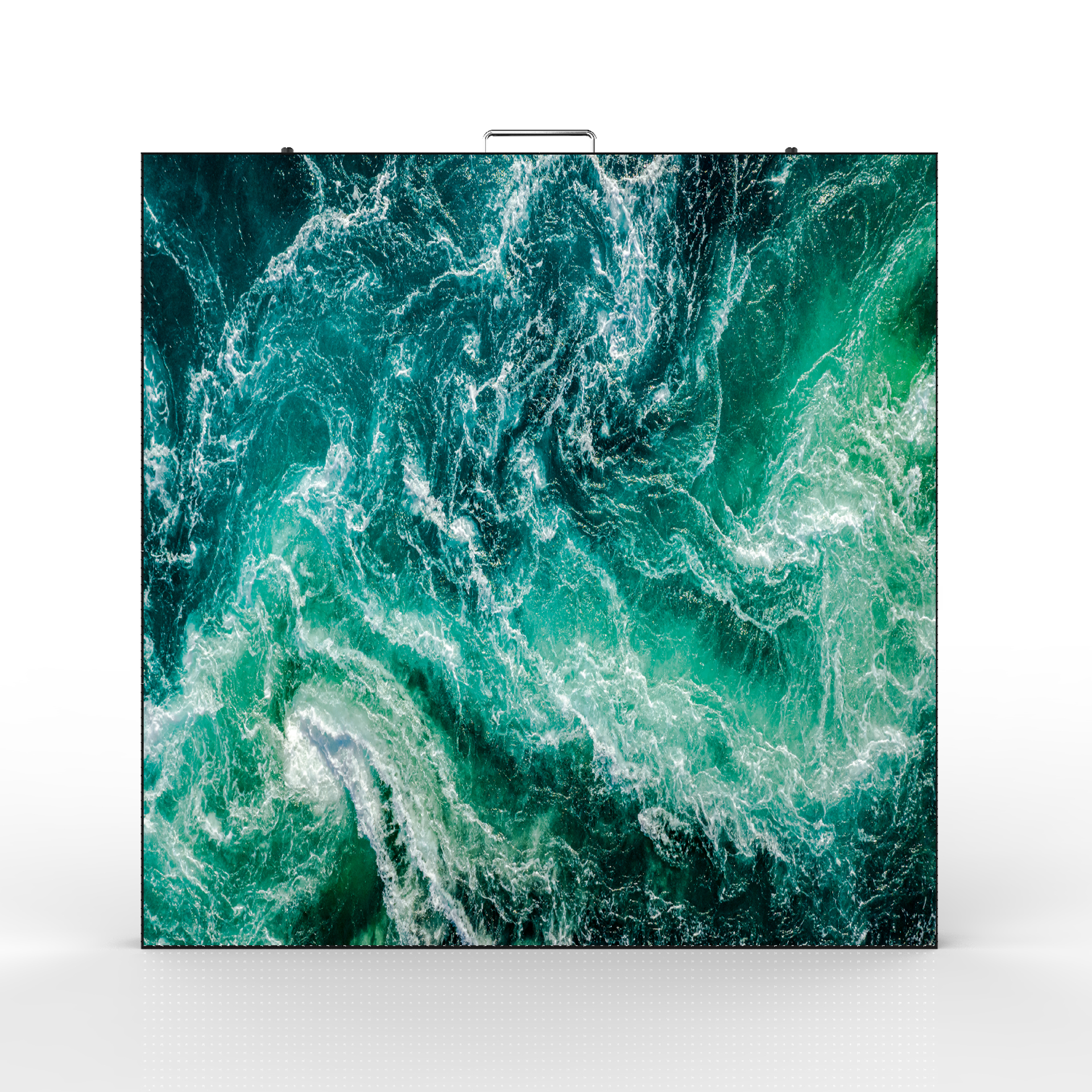

Outdoor SMD LED LE Series

The AOC Outdoor SMD LED LE Series delivers high-impact commercial visuals with 4,500 nits of daylight-defying brightness, Ultra HD clarity, and a 3840 Hz refresh rate. Housed in IP65-rated weatherproof die-casting aluminum cabinets with a 160° ultra-wide viewing angle, it ensures vivid, distortion-free performance in extreme outdoor conditions. Its standardized modular design enables easy installation and maintenance, offering a reliable display solution for plazas, malls, and rooftops.

Specifications

Display information

Brightness cd/m2 (typ.)
4500
Contrast Ratio (typ)
5000:1
Viewing angle H/V (min)
160/160
MTBF
100.000 hours
Aspect Ratio
16:9
Pixel Pitch (mm)
2.5
LED Type
SMD
Module Resolution (W×H in pixels)
128 x 64
Density (dot/m2)
160,000
Color Temp (K)
5,000 ~ 10,000
Cabinet Material
Die-Cast Aluminum
Cabinet Weight (Optional)
24 Kg / Per Cabinet

Other information

Operating Temperature (°C)
0℃~ 40℃
Operating Humidity
10% ~ 90% RH Non-Condensing
Storage Temperature (°C)
-40℃~ 80℃
Storage Humidity
10%～70% RH Non-Condensing
Maintenance
Back
Refresh Rate (Hz)
3,840
Color Depth (bits)
14
Drive Mode
Common Anode
IP Rating
IP65
Cabinet Area (㎡)
0.9216 ㎡
No. of Modules Per Cabinet (W × H)
3 x 6
Resolution of Cabinet (W × H in pixels)
384 x 384
Cabinet Size (W × H × D) mm
960 x 960 x 103

Power consumption

Power suply
AC 100V - 240V @50HZ / @60HZ
Power consumption type (W)
≤300
Power consumption max (W)
≤850

Product dimensions

Module Size (WxHxD,mm)
320 x 160
