Monitor

22B15H2

21.45" IPS Monitor

Screen size (inch)
21.45
Panel resolution
1920x1080
Panel type
IPS
Response time GtG
4 ms
Sync technology (VRR)
Adaptive Sync
Discover all the advantages this product has to offer
View all specifications

IPS Panel

IPS panel ensures an excellent viewing experience with lifelike yet brilliant and accurate colours. Colours look consistent no matter from which angle you look at the display

100Hz Refresh Rate

Equip yourself with twice the frame rate of other monitors and say goodbye to image stuttering and blurry motion. With a 100Hz refresh rate every frame is rendered sharply and in smooth succession, so you can line up your shots accurately and appreciate high speed races in all their glory.

Frameless design

Besides looking modern and attractive, frameless designs enable seamless multi-monitor setups. Your cursor/windows will not be lost anymore in the dark abyss of bezels, when many displays are placed side by side.

Flicker Free

AOC Flicker-Free Technology utilises a DC (Direct Current) backlight panel, reducing flickering light levels. With eye strain and fatigue absolutely minimized, feel free to enjoy those long, intense gaming sessions in comfort!

Vesa Mount

AOC’s Ergo Base stands bring versatility, sturdiness and ease of use in one package. But do you still want to use your wall mount or multi-monitor setup using desk mounts? VESA mounts bring you the uppermost flexibility. Upside-down, in pivot mode, on top of each other, attach your monitor wherever you want using 3rd party mounts and stands thanks to the VESA mount option.

Specifications

CabinetInformation

Bezel type (front)
3-sided frameless
Speakers
Kensington Lock
Bezel Colour (front)
Black
Bezel finishing (front)
Texture
Cabinet colour (backside)
Black
Cabinet finishing (backside)
Texture
Vesa wallmount
75x75

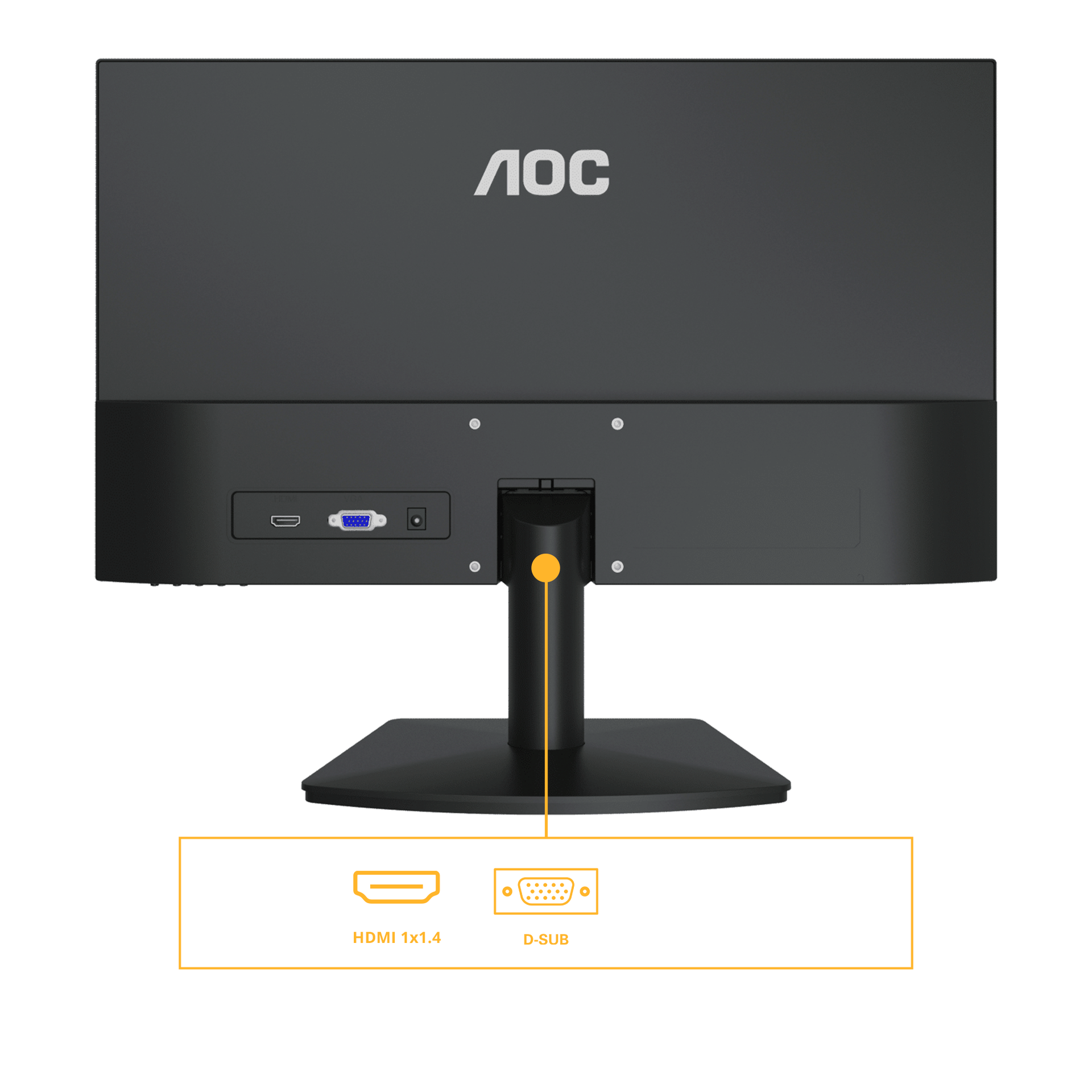

ConnectivityInformation

USB Hub
D-SUB (VGA)
1x
HDMI
HDMI 1.4 x 1

DisplayInformation

Screen size (inch)
21.45
Screen size (cm)
54.6
Flat / Curved
Flat
Display viewing Area (HxW) in mm
478.656 (H) × 260.28 (V)
Display hardness
3H
Pixel Pitch (mm)
0.2493
Pixels per Inch
102.46
Panel resolution
1920x1080
Aspect ratio
16:9
Panel type
IPS
Backlight type
WLED
Max Refresh rate
120Hz (OC, Native 100Hz)
Response time GtG
4 ms
Response time MPRT
1 ms
Static contrast ratio
1000:1
Dynamic contrast ratio
20M:1
Viewing angle (CR10)
178/178
Display colours
16.7 Million
Brightness in nits
250 cd/m²
Color Gamut
NTSC 92% (CIE1976) / sRGB 108% (CIE1931)
Resolution name
FHD

ErgonomicInformation

Tilt
-5° ~ 20°

OtherInformation

EAN
4038986143424
Warranty period
3 years
Operation System
Windows 10/11, Mac OS

PowerConsumption

Power supply
External
Power source
12VDC, 2.0A
Power consumption on (typical) in watts
15.0
Power consumption standby in watts
0.3
Power consumption off in watts
0.3

ProductDimensions

Product dimensions incl. base (WxHxD) mm
492.3 x382.3 x 185.2
Product dimensions excl. base (WxHxD) mm
492.3 x 285.7 x 35.2
Packaging dimensions (WxHxD) mm
565 x 385 x 115
Gross weight incl. package (in kg)
3.3
Net weight excl. package (in kg)
2.2
Product without stand (kg)
1.86

Regulatorycompliance

CE

Sustainability

WEEE
REACH compliant
RoHs compliant

VideoFeatures

Sync technology (VRR)
Adaptive Sync
Digital Signal Frequency Vertical
D-SUB: 48 - 75Hz/ HDMI:48 - 120Hz
Digital Signal Frequency Horizontal
D-SUB: 30k - 85kHz/ HDMI: 30k - 140kHz
Colour space (sRGB) CIE 1931 %
111.2
Colour space (DCI-P3) CIE 1976 %
84.8
Colour space (Adobe RGB) CIE 1976 %
86.4
Flicker-Free
Flicker Free

WhatsInTheBox

HDMI cable
1.5
Power Cable
