Monitor
U28P2U/BS
MonitorU28P2U/BS

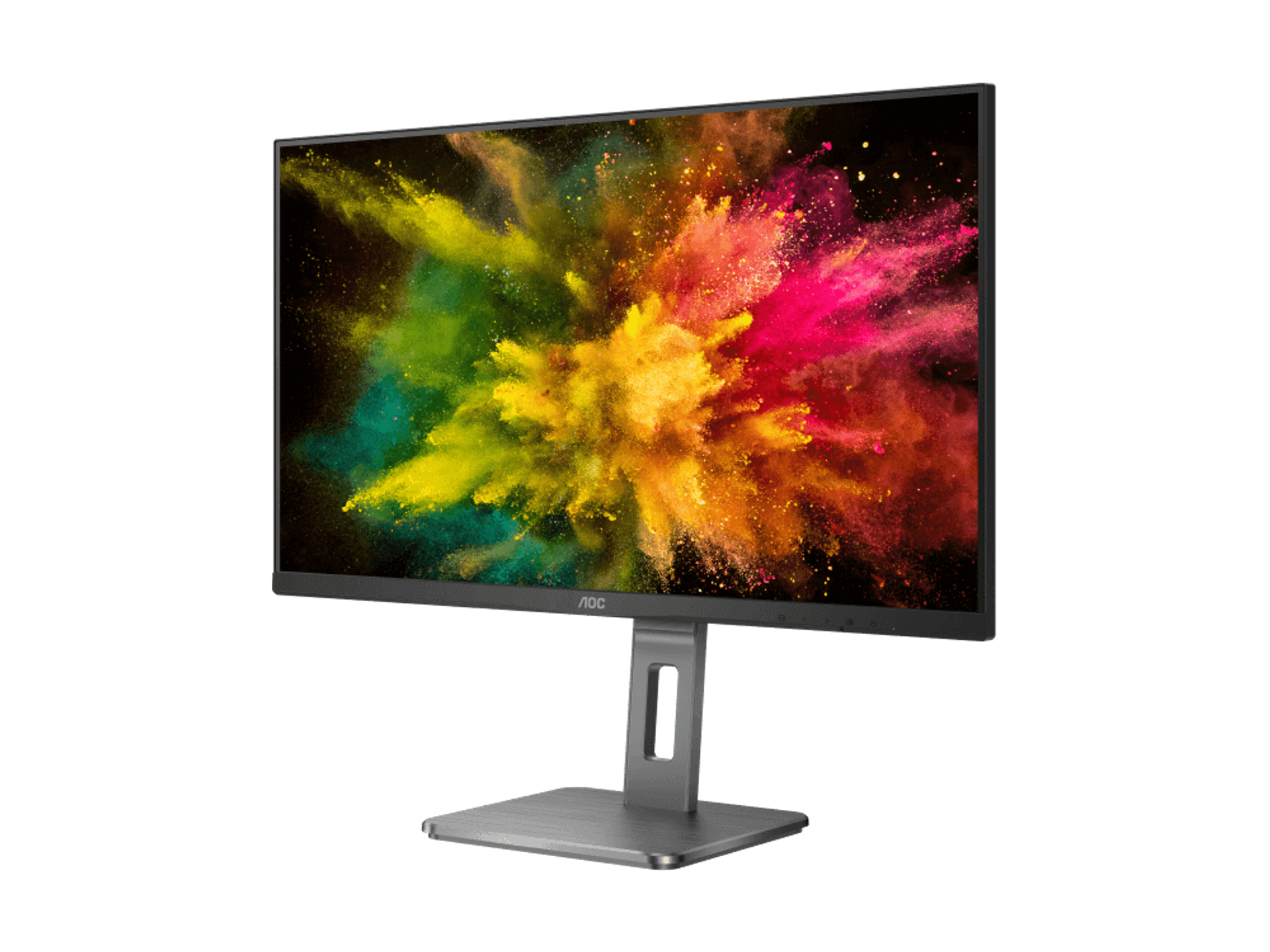

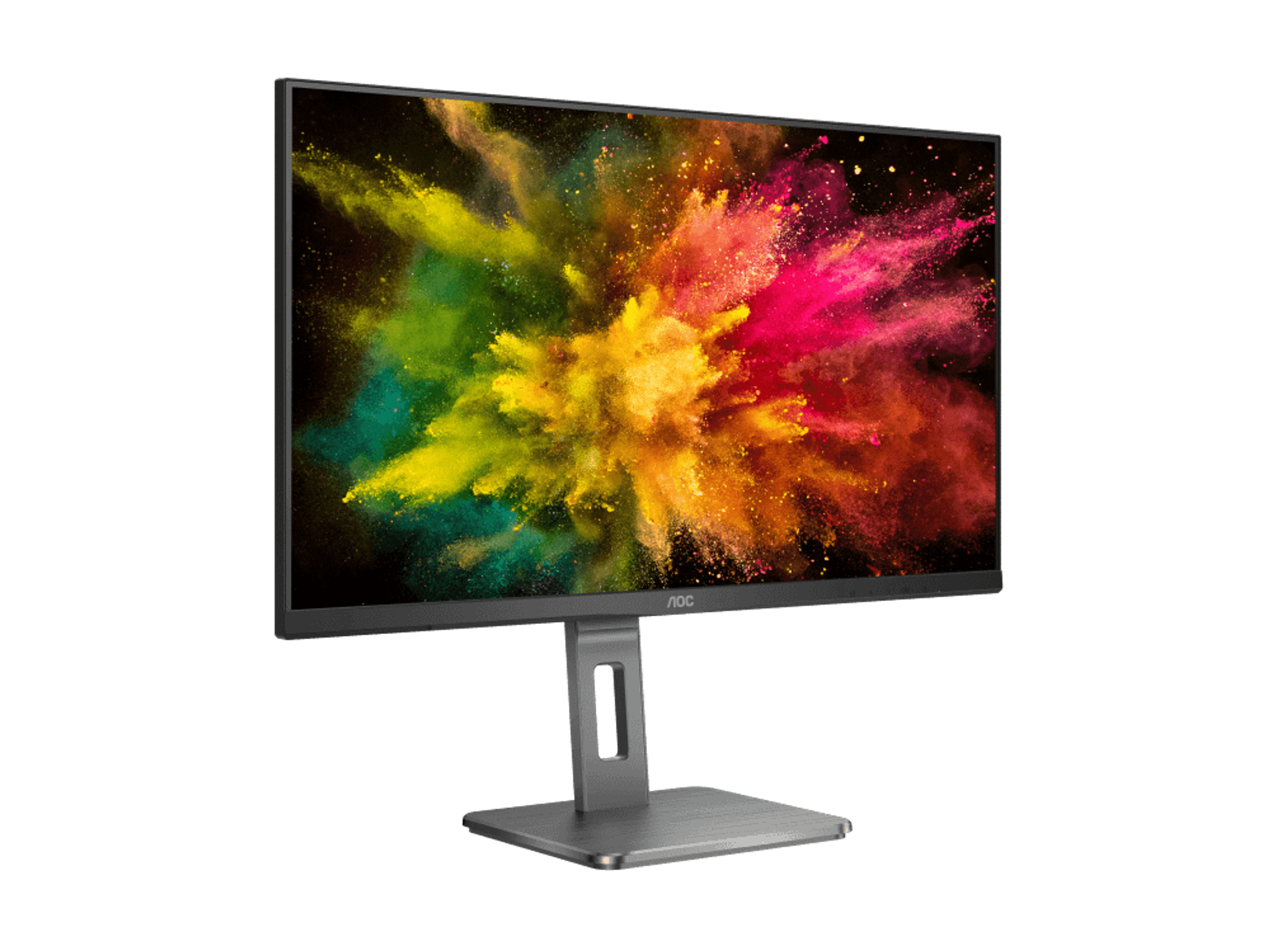

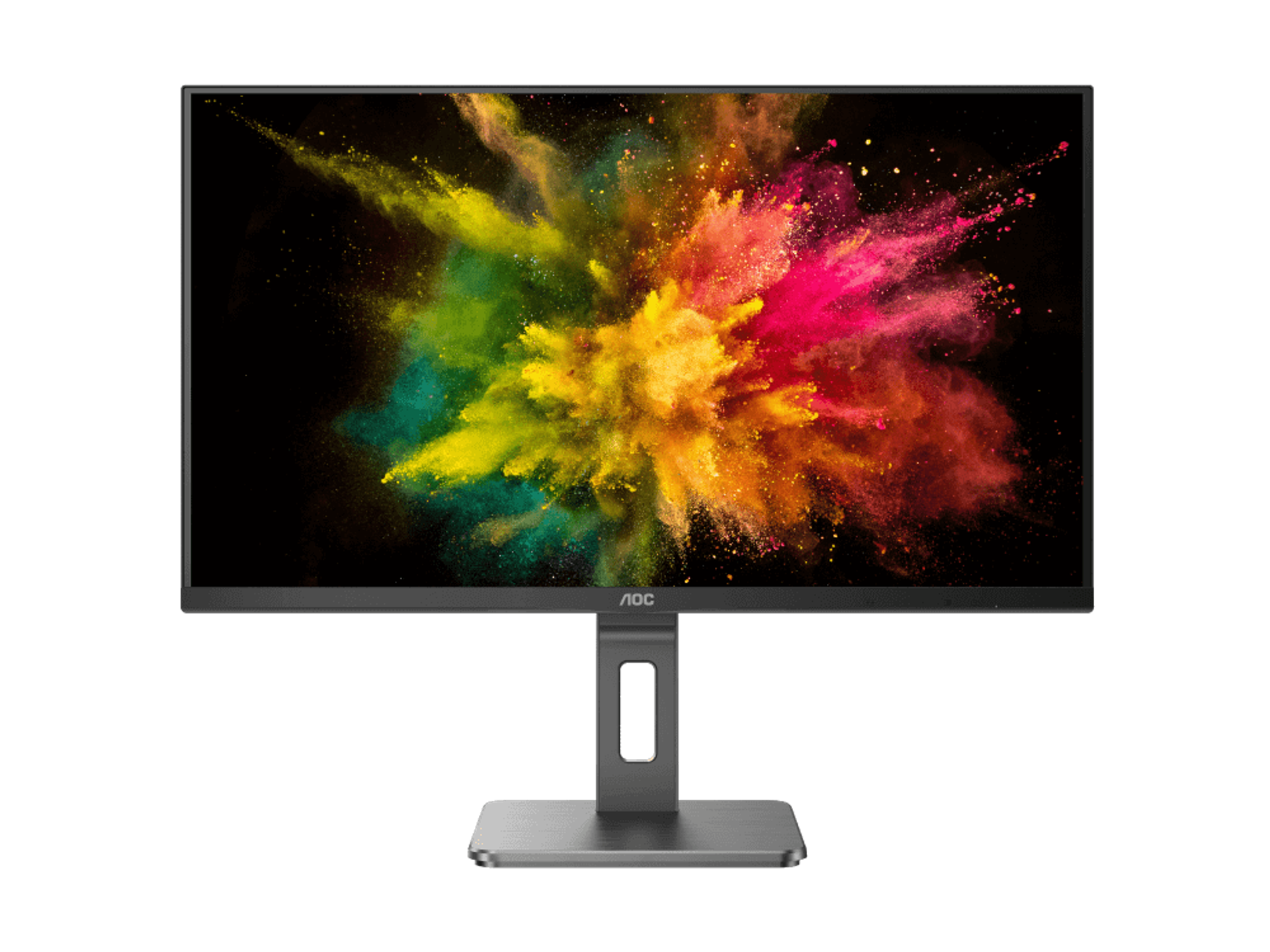

The AOC P2 Series delivers a versatile display eco-system for a range of commercial and business applications that extend beyond office work to include content creation. The 28-inch U28P2U/BS monitor in the series delivers extra-sharp images at 4K UHD (3840 x 2160) resolution on an IPS panel, supporting wide viewing angles of 178°/178° to maintain brightness and color integrity when viewed off-center. The three-sided frameless design ensures an immersive viewing experience, with vivid, true-to-life Supercolor reproduction supported by an HDR mode and 119% sRGB color gamut. A height-adjustable stand (HAS), plus AOC’s Flicker-Free technology, ensure user comfort. I/O connectivity includes a 4-port USB 3.2 hub, and HDMI and DisplayPort ports.
Specifications
- Kensington Lock
- Quick release function
- VESA Mount screw SpecM4 x 10
- Vesa wallmount100x100
- Digital HDCP (HDMI version)HDCP 1.4
- HDMI (MHL)
- DP HDCP versionHDCP 2.2
- USB Hub Down Stream4 x USB3.2 type A Gen1, 5Gbps (BC1.2x1 yellow), 1 USB 3.2 type C Gen1, 5Gbps
- HDMIHDMI 2.0 x 2
- DisplayPortDisplayPort 1.2 x 1
- Audio OutputHeadphone out (3.5mm)
- USB Type upstream1
- Screen size (inch)28.0
- Screen size (cm)70.9
- Flat / CurvedFlat
- Display viewing Area (HxW) in mm620.928 x 341.28
- Panel treatmentAntiglare (AG)
- Pixel Pitch (mm)0.16
- Pixels per Inch157.35
- Panel resolution3840x2160
- Aspect ratio16:9
- Panel typeIPS
- Backlight typeWLED
- Response time GtG4 ms
- Static contrast ratio1000:1
- Dynamic contrast ratio50M:1
- Viewing angle (CR10)178/178
- Display colours1.07 Billion
- Brightness in nits300 cd/m²
- Panel Haze Value25%
- Picture enhancement
- Tilt-3.5° +/- 1.5°~33±2°
- Height adjust (mm)130mm
- Swivel175°±5

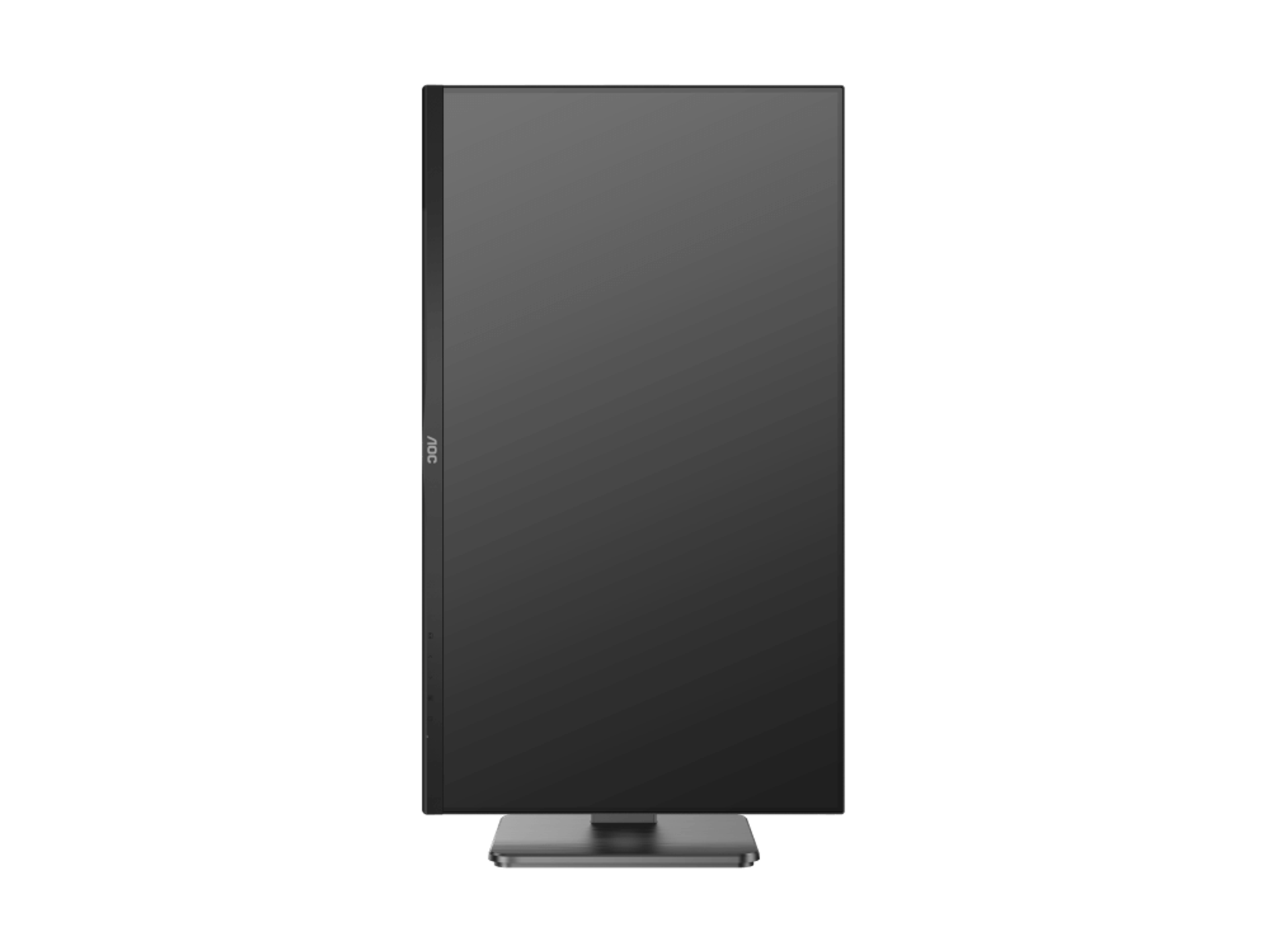

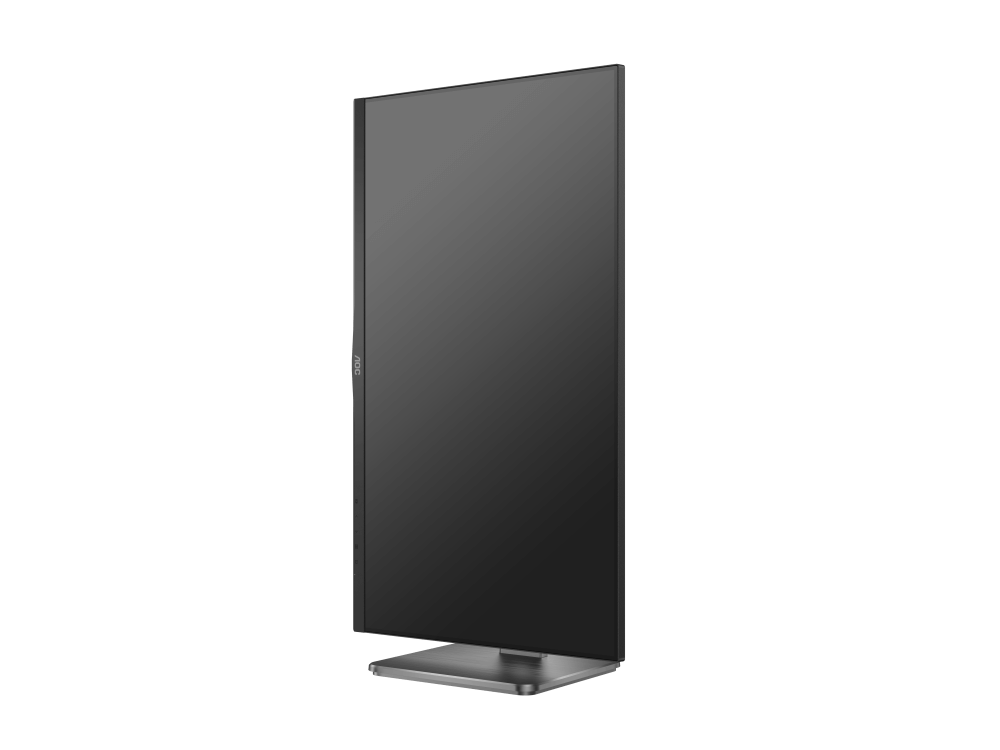

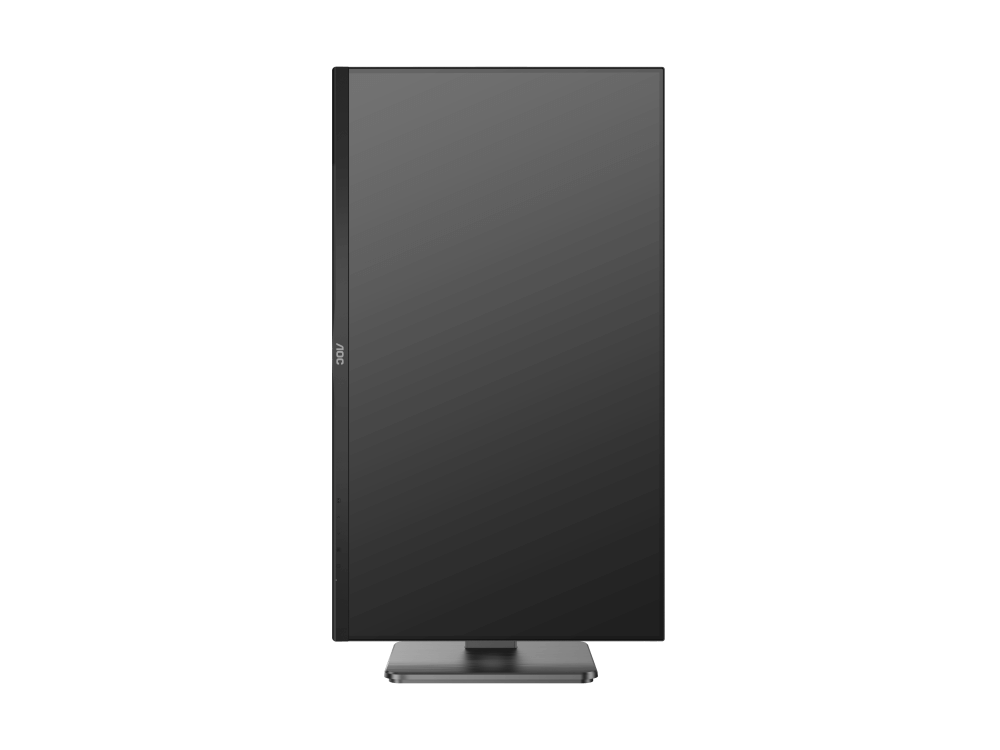

- Pivot90° ±2°
- MTBF50.000 hours
- Plug & Play CompatibilityYes, DDC/CI
- Power source100 - 240V 50/60Hz
- Power consumption on (maximum) in watts80.0
- Power consumption on (typical) in watts45.0
- Power consumption standby in watts0.3
- Power consumption off in watts0.5
- Power LED indicator (Operation)White
- Power LED indicator (Standby)Orange
- Power Switch
- Product dimensions incl. base (WxHxD) mm636.4x(404.0~534.0)x200.1mm (W*H*D)
- Product dimensions excl. base (WxHxD) mm368.5(H) * 636.42(W) * 49.3(D)
- Packaging dimensions (WxHxD) mm593(H) * 715(W) * 160(D)
- Packaging dimensions (WxHxD) mm (CN)593(H) * 715(W) * 160(D)
- Gross weight incl. package (in kg) (CN)9.15
- Product without stand (kg)4.77
- CB
- CE
- TUV-Bauart-Mark
- ISO 9241-307
- FCC
- RoHs compliant
- Sync technology (VRR)Adaptive Sync
- Sync range40-60
- Digital signal frequency30-140kHz (H) 23-75 Hz (V)
- Digital Signal Frequency Vertical23-75 Hz
- Digital Signal Frequency Horizontal30-140 KHz
- HDR (High Dynamic Range)HDR Mode
- Colour space (sRGB) CIE 1931 %119.0
- Colour space (NTSC) CIE 1976 %107.0
- Flicker-FreeFlicker Free
- Delta E<2 (sRGB)Delta E<2 (sRGB)
- Blue Light TechnologyTUV Low Blue Light (software)
Drivers & manuals
| Publish date | Size | Language | Download | |
|---|---|---|---|---|
| September 22, 2025 | Download pdf |
| Publish date | Size | Language | Download | |
|---|---|---|---|---|
| iMenu | December 23, 2025 | Download exe |
| Publish date | Size | Language | Download | |
|---|---|---|---|---|
| UserManual | October 15, 2025 | Download zip |
| Publish date | Size | Language | Download | |
|---|---|---|---|---|
| ReachDocument | January 9, 2026 | Download pdf |
